Product Advantage

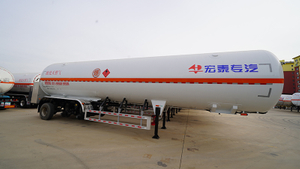

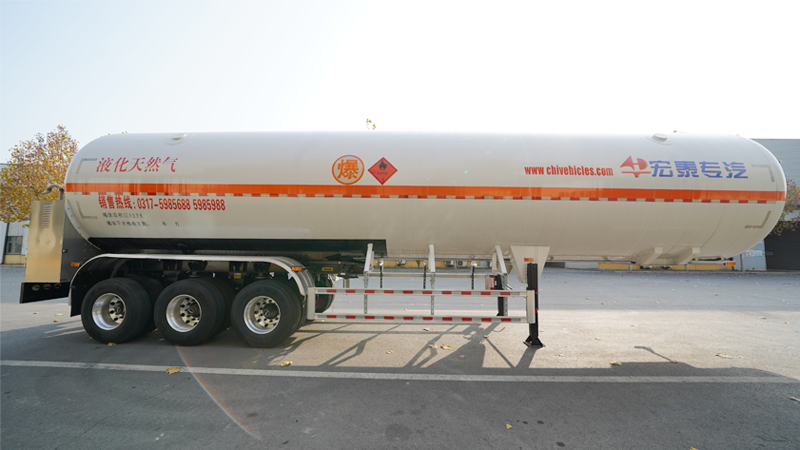

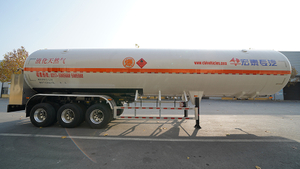

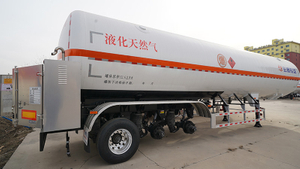

LNG semi-trailers are designed to effectively reduce the temperature of LNG to around -160°C, keeping it in a liquid state during transport. The vehicle is equipped with high-quality thermal insulation materials, along with a closed system that minimizes heat conduction. This ensures that the LNG remains stable and reduces the risk of gas evaporation, enhancing both safety and efficiency.
The semi-trailer’s tank is constructed from high-strength alloy steel, designed to withstand both internal and external pressure fluctuations. Meeting international standards, the tank ensures the safe transport of LNG by preventing safety hazards associated with pressure changes, thus providing a reliable and durable solution for long-distance LNG transport.
Safety is a top priority in LNG transportation. The semi-trailer includes an advanced sealing system with efficient valves and pressure-regulating devices, which ensure that the LNG remains in a closed state throughout the journey, minimizing the risk of leakage. Additionally, the trailer is equipped with explosion-proof designs, fire extinguishing systems, and gas leak detection mechanisms, all aimed at maintaining safety under extreme conditions.
LNG is a cleaner alternative to traditional energy sources, offering lower carbon emissions and better energy efficiency. The semi-trailer is designed to optimize gas flow and temperature control, minimizing natural gas waste and improving energy utilization. Furthermore, the trailer can be customized according to customer needs, with options for tank capacity, temperature control systems, and other configurations to ensure optimal performance based on transportation volume, distance, and environmental factors.
LNG semi-trailers are used in a variety of industries, including:
Long-distance LNG transportation
Natural gas storage and distribution
LNG filling station distribution
Industrial and power plant gas supply
Offshore platform energy supply
Emergency gas supply
Environmental protection projects
With their advanced features and versatile applications, LNG liquefied natural gas semi-trailers play a critical role in the safe and efficient transport of LNG across multiple industries.
Technical Parameters
| Rear Dump Trailer | |||
| Body | |||
| Dimension | 10000mm×2500mm×3700mm (The final size is according to the drawing) | ||
| Box size（Inner Size） | 9300mm×2300mm×1900mm（According the drawing） | ||
| Tare Weight | customizable | ||
| Total Volume ( m3 ) | customizable | ||
| Side wall thickness | 6 mm customizable (Imported wear-resistant steel) | ||
| Bottom plate thickness | 8 mm customizable (Imported wear-resistant steel) | ||
| Lifting system | Full set of HYVA Hydraulic Lifting Cylinder (imported with original packaging) customizable | ||
| Chassis | |||
| Axle | 2/3/4 pcs, 13T/16T,BPW/FUWA /DERUN | ||
| Landing Gear | JOST E100, double speed type; | ||
| King Pin | JOST 2.0/3.5 inches king pin | ||
| Suspension | Mechanical Suspension / air suspension / Bogie suspension (Germany Type or America Type ) | ||
| Leaf Spring | 90(W)mm×16(Thickness)mm×10 layers，4/6/8 sets | ||
| Pneumatic Braking System | Dual lines air brake system with WABCO valve；with ABS | ||
| Rim | 8.5-22.5, 16 pcs rims; | ||
| Tire | 12R22.5, 12.00R20,315/80R22.5,12 pcs | ||
| Painting | Sandblasted, anti-rust chassis surface is available with 1 layer of anti corrosive primer and 2 layers of top coats. | ||
| Color: Optional, to be determined by customer | |||
| Accessories | One standard tool box, one spare tire carrier. | ||
