Product Description
➩ Product Advantage
Advanced Cryogenic Technology Engineered for long-distance LNG transportation, the semi-trailer maintains temperatures around -160°C to keep the gas in liquid form. High-quality insulation materials and a sealed system minimize heat transfer, reducing evaporation risks and ensuring stability during transit.

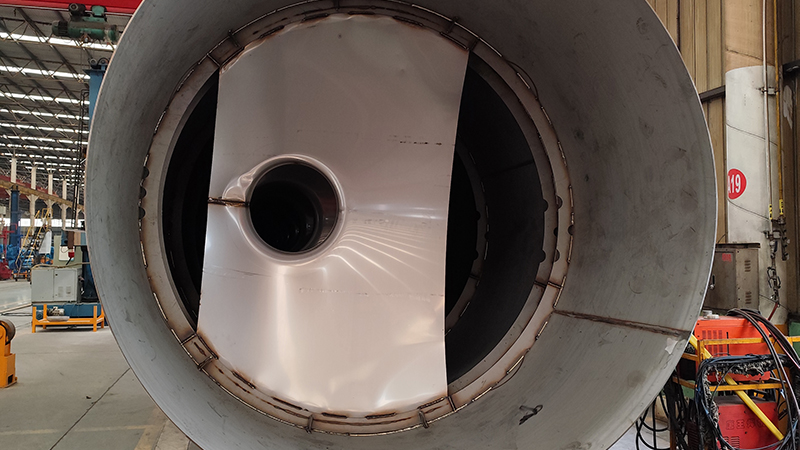

High-Strength Tank Construction The tank is made from high-pressure-resistant alloy steel, designed to withstand both internal and external pressure variations. Built to international safety standards, it ensures structural integrity and minimizes hazards linked to pressure fluctuations.
Leak-Proof Sealing System Equipped with efficient valves and pressure regulation mechanisms, the trailer maintains a fully enclosed system, significantly reducing the chance of gas leakage. This system also adjusts temperature and pressure automatically, ensuring stable and safe transportation.
Comprehensive Safety Measures To enhance security, the semi-trailer incorporates explosion-proof designs, automatic fire suppression systems, and gas leak detection technology. These features ensure operational safety even in extreme conditions, aligning with international transport regulations.
Eco-Friendly and Efficient LNG is a cleaner energy source with lower carbon emissions compared to conventional fuels. This semi-trailer optimizes energy use by precisely regulating gas flow and temperature, minimizing waste, and promoting sustainable transport practices.
Customizable Configurations Designed to meet diverse operational needs, the semi-trailer offers customizable options for tank capacity, body size, and temperature control systems. Clients can select specifications based on transport volume, distance, and environmental conditions for optimized performance.
➩ Technical Parameters
| ltem | specifications | Remark |
| Material | Carbon steel/stainless steel/Aluminum | |
| Axles | 2/3/4*13ton capacity | OCT,FUWA,BPWor other Brand |
| Suspension | Mechanical suspension | Air /bogie suspension optiona |
| Leaf spring | 10pcs | Air bag lifting optional |
| Tire | 12R22.5,11R22.5,315/80R22.5, 385/65R22.5 | Size andbrand optiona |
| Rim | 9.00-22.5,8.25-22.5,11.75-22.5 | Other size optiona |
| King pin | 2"/3.5"bolt type,SAE standard | Welding on type optiona |
| Landing gear | 28 Ton two speed | JOST or equivalent brand |
| Tank body | 5mm-7mm | |
| End plate | 6mm-20mm | |
| Man hole | 300mm-500mm | |
| Braking system | Dual linebrake system,Double air chamber ,brake valve,40L air tanks;ABSEBS optional | |
| Electrical | LED light,7ways,24V | |
| Painting | Blasting and clean rust,1 coat of prime painting ,2 coat of finish painting | |
➩ Applications
Long-distance LNG transportation
Natural gas storage and distribution
LNG filling station supply
Industrial and power plant energy supply
Ship and offshore platform fueling
Emergency gas supply solutions
LNG liquefaction and distribution services
Environmental energy projects
