To understand modern freight logistics, we must first clarify the core terminology. A "semi-truck" or tractor provides the vital engine power. The unpowered cargo unit towed closely behind it is the Semi Trailer. Combined, they form the iconic 18-wheeler seen on highways worldwide. This equipment functions as a critical capital asset for any serious logistics operation. Trucks move over 70% of all US freight today. Selecting the right hauling unit dictates your fleet operational efficiency. It ensures strict route compliance and protects your underlying profitability.
This guide provides a clear, specification-backed evaluation of standard and specialty options. Fleet managers and B2B buyers will learn to align equipment perfectly with cargo demands. You must match a Semi Truck Trailer to existing loading infrastructure efficiently. We will cover federal weight limits, physical facility requirements, and strategic fleet risk management. By understanding these dimensions, you can avoid costly procurement mistakes and optimize your transportation routes.
Dry Vans and Reefers dominate standard freight, offering high versatility but requiring specific dock infrastructure.
Flatbeds, Drop Decks, and Lowboys/RGNs scale sequentially to handle oversized, overweight, and complex-loading cargo (up to 150,000 lbs for multi-axle RGNs).
Tankers and Material Handling Trailers (like Walking Floors and Dumps) require specialized compliance (DOT/Hazmat) and handling protocols due to load dynamics.
Trailer selection is a TCO decision: Buyer evaluation must factor in insurance premiums, fuel drag (for reefers), hydraulic maintenance, and bridge weight formulas, not just initial purchase price.
Many fleets rely heavily on standard transport configurations. These units handle the vast majority of general consumer goods. They form the backbone of commercial retail supply chains.
Profile: These are fully enclosed, weather-protected boxes. You will see them everywhere. They remain the most common cargo units on US roads. Standard dimensions typically measure 53 feet long and 102 inches wide. They protect freight from rain, wind, and road debris.
Best For: Use them for palletized freight. They excel at moving consumer goods, clothing, and electronics. They easily handle neatly stackable cargo.
Operational Limitation: They strictly require elevated loading dock infrastructure. If a loading dock is unavailable, you need specialized ground ramps. Forklift access relies entirely on level entry points. You cannot load these units from the side or top.
Profile: Reefers function as heavily insulated dry vans. They feature independent cooling units mounted on the front. Drivers can control the internal climate precisely. They utilize internal airflow chutes to distribute cold air evenly.
Best For: Haul perishables and sensitive pharmaceuticals safely. They also protect temperature-sensitive agricultural chemicals. Produce, meat, and dairy rely exclusively on this equipment.
Evaluation Note: These units yield higher freight rates per mile. However, they introduce heavy operational risk factors. You must account for additional diesel consumption constantly. The secondary refrigeration engine demands rigorous preventative maintenance. You must also maintain strict FDA and FSMA temperature-monitoring compliance. Insulation degrades naturally over the years, decreasing long-term thermal efficiency.

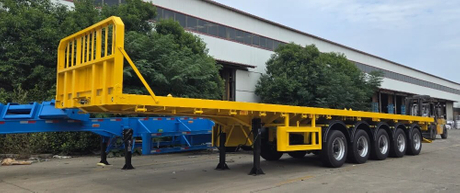

Profile: These represent open-deck cargo platforms. A standard maximum payload sits typically around 48,000 lbs. You face a strict legal cargo height limit of roughly 8.5 feet. This limit keeps the total vehicle height safely under 13.6 feet. Most decks utilize aluminum and steel combinations to balance weight and strength.
Best For: Transport raw construction materials and heavy steel coils. They handle bulky, irregularly shaped items easily. Lumber and heavy pipes travel best on open decks.
Operational Advantage: Flatbeds offer unmatched loading versatility. You can side-load them using multiple forklifts simultaneously. You can also top-load them rapidly using heavy overhead cranes. Drivers must use straps, chains, and edge protectors to secure loads manually.
Trailer Type | Typical Max Payload | Primary Loading Method | Key Freight Category |
|---|---|---|---|
Dry Van | 43,000 - 45,000 lbs | Rear Dock / Forklift | Consumer Goods, Pallets |
Refrigerated (Reefer) | 42,000 - 44,000 lbs | Rear Dock / Forklift | Perishables, Medicine |
Standard Flatbed | 48,000 lbs | Side / Top Crane | Steel, Lumber, Machinery |
Some cargo requires highly engineered structural solutions. Standard decks simply cannot accommodate extreme dimensional freight. Heavy haul transport units solve these difficult logistical challenges. They ensure you move massive equipment legally and safely.
Profile: This profile features a distinct upper deck. It clears the tractor space safely. A longer, lower main deck follows immediately behind it. This creates a stepped appearance.
Best For: Move cargo exceeding the strict 8.5-foot height limit. The dropped main deck lowers the overall freight profile. This prevents dangerous bridge clearance violations. Transport tall agricultural tractors or large HVAC units effortlessly.
Profile: These feature a specialized double-drop design. The deck drops sharply behind the gooseneck. It drops again just before the rear wheels. This creates an extremely low center of gravity. It hugs the road surface tightly.
Best For: Haul heavy construction equipment like excavators. They also transport large industrial mining machinery safely. Military vehicles often require these exact profiles.
Evaluation Note: Standard Lowboys handle 40,000 to 80,000 lbs. RGNs offer far more operational flexibility. Stretch RGNs can scale up to an impressive 20 axles. They support maximum payloads reaching up to 150,000 lbs. The detachable front acts as a convenient, gentle drive-on ramp. This eliminates the need for external lifting equipment.
Profile: These hybrid designs combine standard flatbed loading versatility with van-like weather protection. They use a sliding, retractable tarp system over an aluminum frame (Conestoga). Alternatively, some use flexible, heavy-duty side curtains.
Best For: Transport high-value, delicate industrial cargo. Sophisticated robotics or aerospace parts require safe overhead crane loading. The curtain system ensures perfect weather protection during transit. You absolutely cannot risk manual tarp-rub damage on these painted surfaces.
Loose materials require specific containment structures and mechanisms. Liquids demand complex physical engineering to control movement. Material handling units involve unique, mechanized discharge methods.
Profile: Tankers utilize a cylindrical geometric design. This distinct shape lowers the overall center of gravity. It actively helps control dangerous liquid surge dynamics during braking. Sub-types include dedicated petroleum transport tanks. You will also see chemical stainless steel vessels and pneumatic dry bulk tanks.
Compliance Risk: Liquid bulk transport requires strict federal DOT certification. Tanks need specific internal baffling systems to prevent catastrophic liquid sloshing. Smooth-bore tanks lack baffles entirely for food-grade sanitation. Commercial drivers must hold Hazmat (H) or Tanker (N) specialized endorsements on their licenses.
Profile: These feature heavy-duty hydraulically lifted beds. They carry loose aggregates, gravel, and sand efficiently.
Evaluation Note: End dumps are extremely common across construction sites. However, they carry a significant, fatal tip-over risk during rear discharge. Uneven ground exacerbates this danger. Side dumps offer vastly superior operational stability. They work much better on uneven, unpaved construction terrain. Both structural styles require frequent, expensive hydraulic system maintenance.
Profile: These units feature an automated conveyor-like floor system. Moving aluminum slats push material steadily out the rear doors. The bed remains completely horizontal during this process.
Best For: Move forestry biomass and municipal waste management loads. They also handle loose agricultural feed brilliantly.
Operational Advantage: You can unload massive volumes without lifting the trailer bed. This brilliant engineering solves fatal overhead clearance issues. Power lines, low facility ceilings, or windy conditions at dump sites pose absolutely no threat.
Fleet buyers need a standardized, rigorous evaluation process. Purchasing the wrong transport asset drains immediate capital and long-term profitability. You must analyze your exact freight environment first.
Evaluate your average daily freight weight meticulously. You must compare it against the federal Gross Vehicle Weight (GVW) limit. The federal highway maximum strictly remains 80,000 lbs. You must consider the heavy tractor weight alongside the empty cargo unit. Look into lightweight aluminum composite components. Lighter equipment maximizes your legal billable payload capacity. Every pound saved on a Semi Trailer allows you to haul more profitable freight.
Avoid highly common, costly procurement mistakes. Never buy a standard dry van for raw construction routes. The delivery site will likely lack an elevated loading dock. Match the equipment precisely to both pickup and drop-off environments. Verify the drop-off infrastructure directly with facility managers. Drivers lose valuable hours attempting to unload at incompatible facilities. Forklift access requires specific deck heights.
Map out your primary regional freight corridors properly. You must factor in highway overpass clearances carefully. Regional oversize load permits vary widely between states. Take these critical steps before buying heavy equipment:
Review state-specific axle spacing regulations.
Calculate the Federal Bridge Gross Weight Formula for your planned setup.
Identify narrow urban routes that restrict longer 53-foot unit navigation.
Audit overhead power line heights near your primary delivery sites.
Determine local curfew restrictions for moving oversized heavy loads.
Resolve these strict legal constraints before committing to any heavy-haul configuration.
Smart procurement goes far beyond evaluating the initial dealership price tag. You must manage ongoing operational risks actively. Fleets face mounting financial pressures from hidden operational inefficiencies.
Inefficient loading processes drain fleet cash flow rapidly. Selecting an incompatible configuration slows down your drivers at the dock. Speed of deployment is a vital daily financial metric. Every single idle hour reduces your potential weekly revenue. Ensure your chosen equipment matches the facility turnaround speed. Time spent waiting for specialized cranes or ramps hurts your bottom line.
Heavy haul operations naturally carry substantially higher accident risks. Multi-axle RGNs and hazardous material tankers demand significantly higher commercial insurance premiums. Underwriters evaluate liquid surge risks heavily. Lenders review specialized hauling equipment closely before approval. They require rigorous, documented business cases for niche units. Standard dry vans secure bank financing much easier due to massive resale demand.
Project your secondary maintenance costs accurately over a ten-year horizon. An engineered unit is never just an empty aluminum box. You must maintain heavy hydraulic lift cylinders continuously. Sliding axles require constant lubrication and brake adjustments. Independent refrigeration motors need scheduled preventative capital expenditure. Track these mechanical wear patterns closely to ensure fleet profitability.
Inspect hydraulic hoses monthly for microscopic pressure leaks.
Replace refrigerated unit engine belts before they snap during transit.
Grease standard landing gear thoroughly every quarter.
Monitor walking floor aluminum slat wear closely in abrasive material hauling.
Selecting the right equipment requires a careful, strategic balance. You must weigh daily cargo capabilities against physical facility constraints. Never ignore the ongoing financial impact of your specialized equipment choices. Fleet success depends on matching the tool to the specific logistics task.
Before purchasing, audit your most frequent freight routes immediately. Consult your veteran drivers regarding actual site access realities. Run a thorough operational cost analysis internally. Factor in anticipated mechanical maintenance and rising insurance premiums. Complete these crucial steps before engaging a manufacturer or dealer for procurement of your next Semi Truck Trailer.
A: The Dry Van remains the most common choice nationwide. Its fully enclosed box design offers maximum cargo security. It provides excellent weather protection for palletized retail goods. Commercial freight moves most efficiently through these standardized, easily accessible units.
A: A hotshot is a smaller, highly agile open-deck unit. Heavy-duty pickup trucks usually tow them instead of full semi-tractors. Fleets use them for expedited, short-haul freight deliveries. They excel in niche industries like oilfields or agriculture where maneuverability is essential.
A: Standard units can last 10 to 15 years easily. This lifespan requires proper scheduled maintenance and regular anti-corrosion treatments. Proper suspension care extends their durability significantly. High-wear variants like dump beds face harsher mechanical stress and may have shorter optimal lifespans.
