Product Introduction

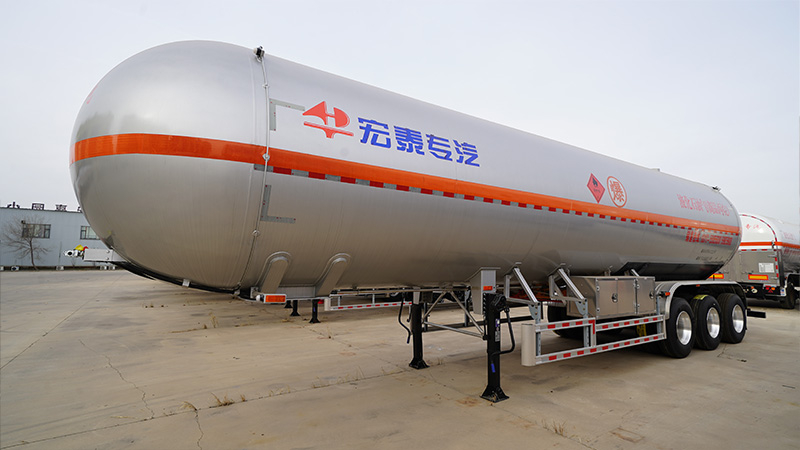

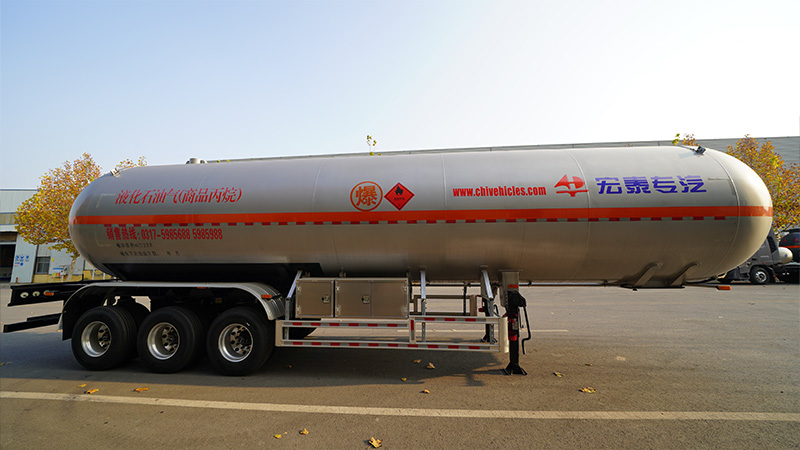

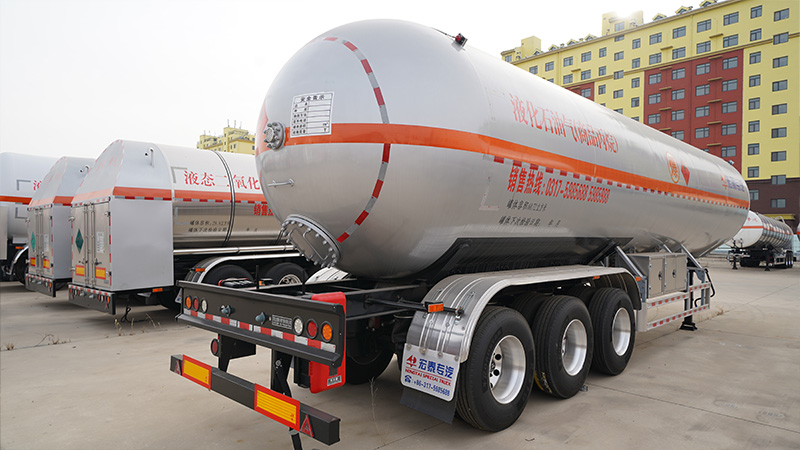

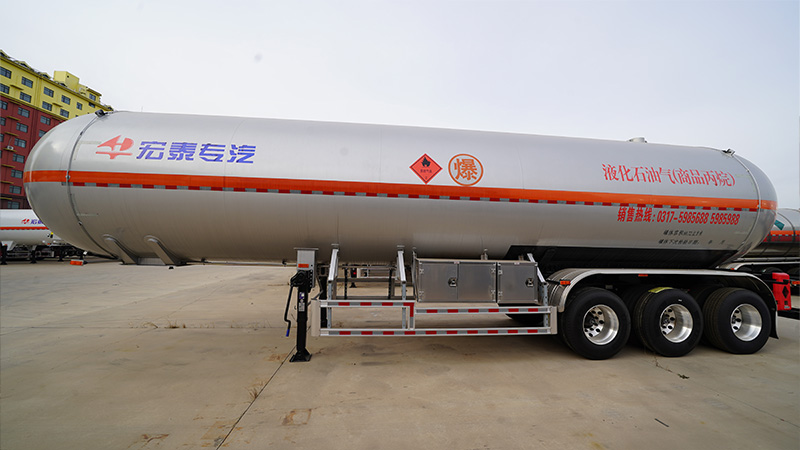

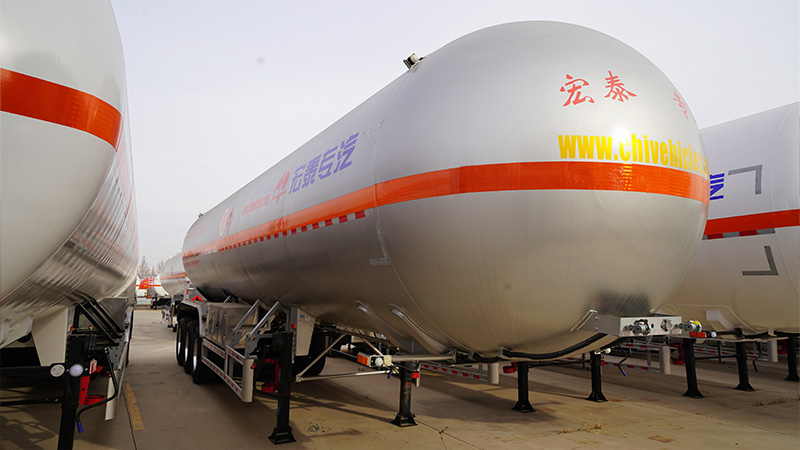

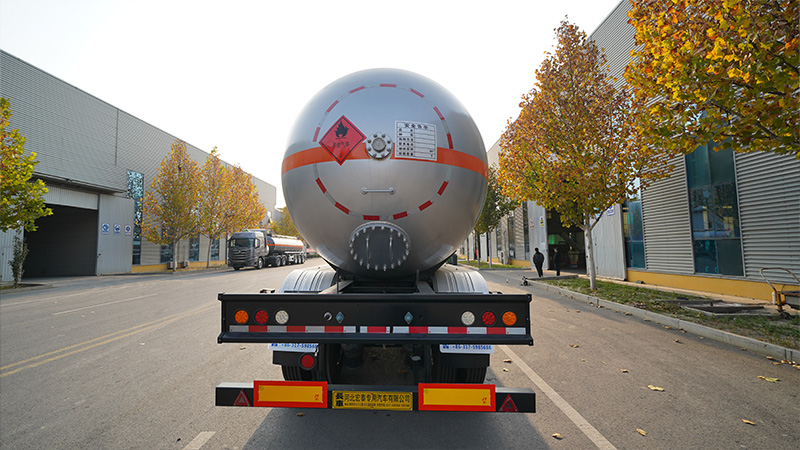

The LPG semi-trailer is a highly efficient and versatile transportation solution, specifically designed for the safe and effective transport of liquefied petroleum gas. This trailer integrates advanced technology, superior safety features, and environmental-friendly designs to meet the diverse needs of the LPG industry, from long-haul transportation to industrial and residential supply.
➩ Product Advantage
Durability and Safe Transport
The LPG semi-trailer is equipped with a high-strength tank constructed to withstand high internal pressures and external environmental factors. The durable material ensures that liquefied petroleum gas remains secure and stable throughout the journey, preventing any safety hazards caused by pressure variations. Additionally, the tank's design minimizes the risk of leaks and maintains the integrity of the gas during transport.
Enhanced Insulation and Efficiency
The trailer’s insulation system plays a crucial role in maintaining the liquid state of LPG by effectively reducing temperature fluctuations during transit. This ensures minimal energy loss, improves efficiency, and maintains the safety of the gas cargo. With its excellent thermal performance, the trailer ensures that LPG remains stable and secure for long-distance and large-scale distribution.
Eco-Friendly and Flexible Solutions
As part of a greener transportation approach, the LPG semi-trailer is designed with an efficient sealing system that reduces gas leakage and minimizes carbon emissions. The optimized fluid dynamics and aerodynamics of the trailer contribute to lower wind resistance, enhancing stability and driving performance. Furthermore, it can be tailored to meet a variety of transportation needs, whether for urban delivery, industrial use, or emergency supply.
➩ Technical Parameters
| ltem | specifications | Remark |
| Material | Carbon steel/stainless steel/Aluminum | |
| Axles | 2/3/4*13ton capacity | OCT,FUWA,BPWor other Brand |
| Suspension | Mechanical suspension | Air /bogie suspension optiona |
| Leaf spring | 10pcs | Air bag lifting optional |
| Tire | 12R22.5,11R22.5,315/80R22.5, 385/65R22.5 | Size andbrand optiona |
| Rim | 9.00-22.5,8.25-22.5,11.75-22.5 | Other size optiona |
| King pin | 2"/3.5"bolt type,SAE standard | Welding on type optiona |
| Landing gear | 28 Ton two speed | JOST or equivalent brand |
| Tank body | 5mm-7mm | |
| End plate | 6mm-20mm | |
| Man hole | 300mm-500mm | |
| Braking system | Dual linebrake system,Double air chamber ,brake valve,40L air tanks;ABSEBS optional | |
| Electrical | LED light,7ways,24V | |
| Painting | Blasting and clean rust,1 coat of prime painting ,2 coat of finish painting | |
➩ Applications
This semi-trailer is widely used in transporting liquefied petroleum gas over long distances, as well as for gas distribution to filling stations, industries, and remote areas. It is also ideal for emergency gas supply, offshore platforms, and environmentally conscious energy projects.
