Product Introduction

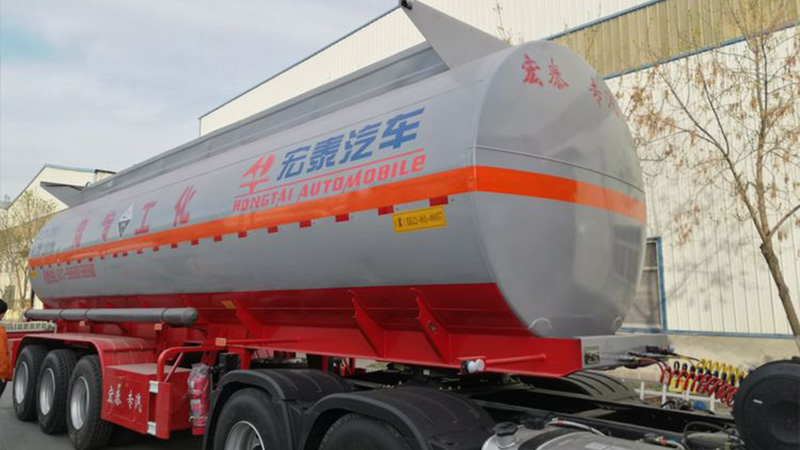

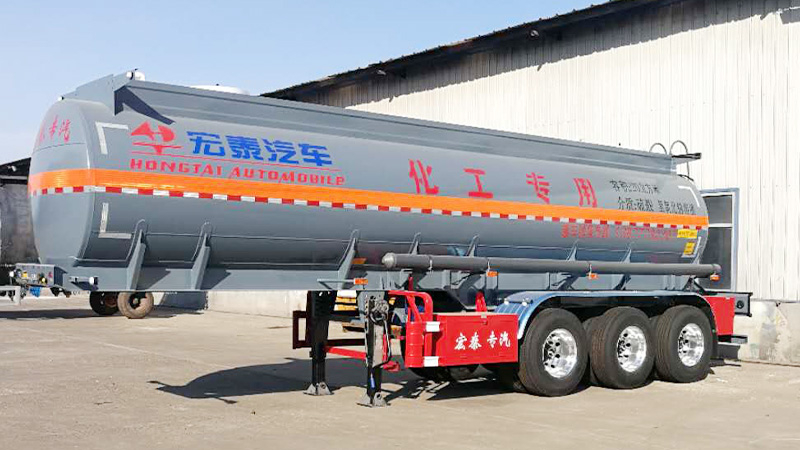

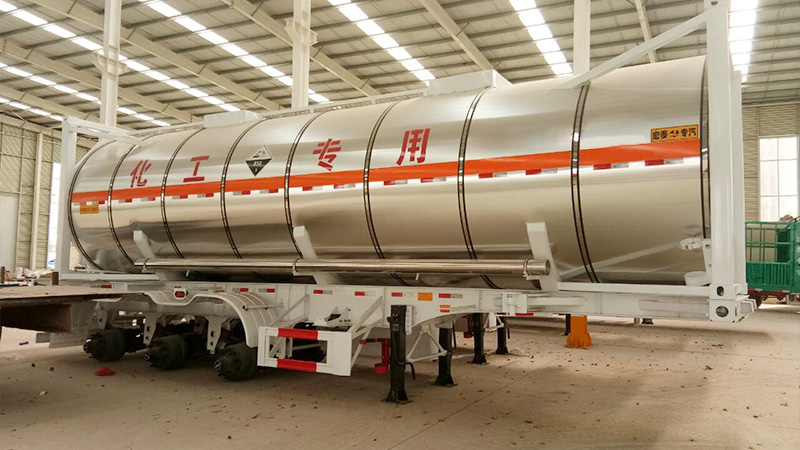

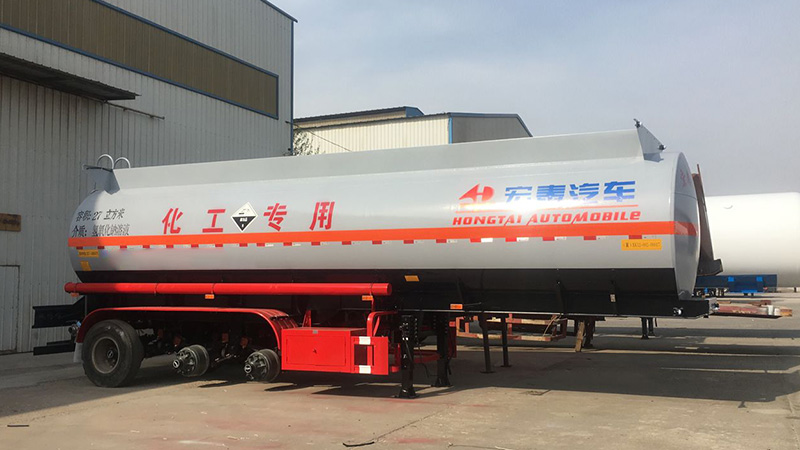

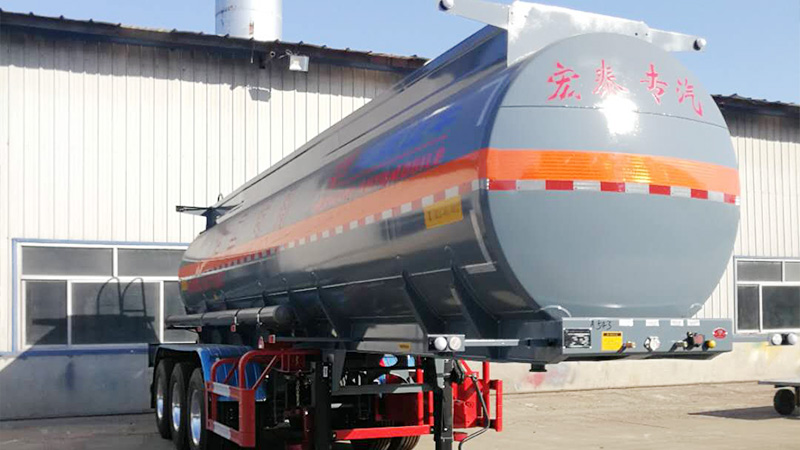

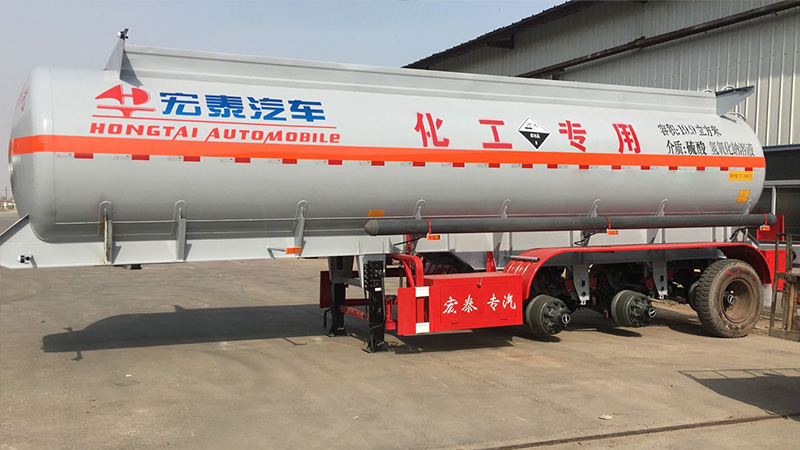

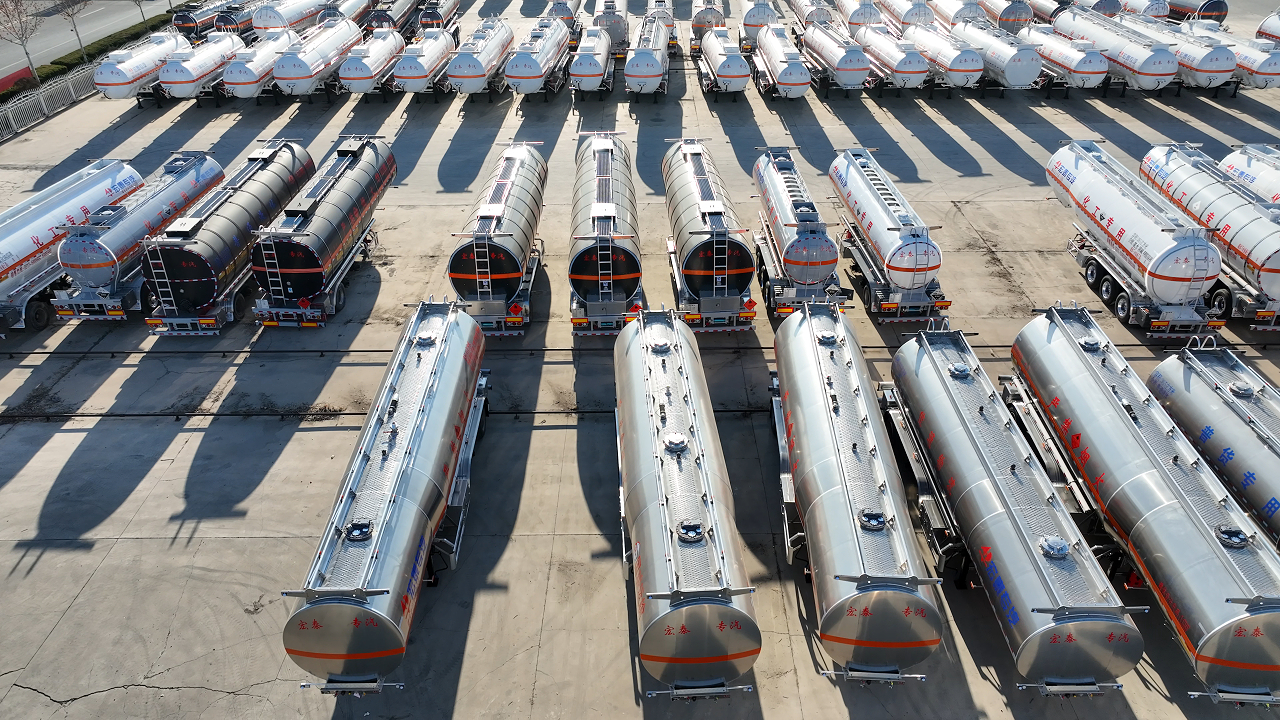

The corrosive liquid tank trailer is specially designed for safely transporting hazardous chemicals and corrosive liquids. With its robust corrosion resistance, safety features, and temperature control systems, this trailer is an essential tool in industries such as chemicals, petroleum, agriculture, food, and pharmaceuticals. It is equipped with advanced monitoring systems that ensure real-time tracking and accident prevention, providing a secure method for transporting dangerous goods.
➩ Product Advantage
Key Advantages
Corrosion Resistance and Durability
The tank is constructed from highly corrosion-resistant materials like stainless steel, fiberglass, or polyethylene-coated alloys, which protect against damage from acids, alkalis, and solvents. These materials ensure the trailer remains structurally stable over time and prevents leaks, enhancing safety during transportation.
Safety and Explosion-Proof Design
Safety is a primary concern in the design of these trailers. Features like double seals, firewalls, pressure relief valves, and gas discharge systems protect against accidents caused by internal or external impacts. Additionally, the trailer's anti-static and explosion-proof design, including electrostatic spraying and grounding systems, minimizes the risk of fire or explosion during transport.
Temperature Control and Customization
These trailers can be customized to meet specific transportation needs, including high and low-temperature resistance. This makes them suitable for transporting chemicals like liquid chlorine or ammonia, which require stable temperature conditions. The smooth, corner-free interior design ensures easy cleaning and maintenance, making it ideal for industries with strict hygiene standards, such as food and pharmaceuticals.
➩ Technical Parameters
| ltem | specifications | Remark |
| Material | Carbon steel/stainless steel/Aluminum | |
| Axles | 2/3/4*13ton capacity | OCT,FUWA,BPWor other Brand |
| Suspension | Mechanical suspension | Air /bogie suspension optiona |
| Leaf spring | 10pcs | Air bag lifting optional |
| Tire | 12R22.5,11R22.5,315/80R22.5, 385/65R22.5 | Size andbrand optiona |
| Rim | 9.00-22.5,8.25-22.5,11.75-22.5 | Other size optiona |
| King pin | 2"/3.5"bolt type,SAE standard | Welding on type optiona |
| Landing gear | 28 Ton two speed | JOST or equivalent brand |

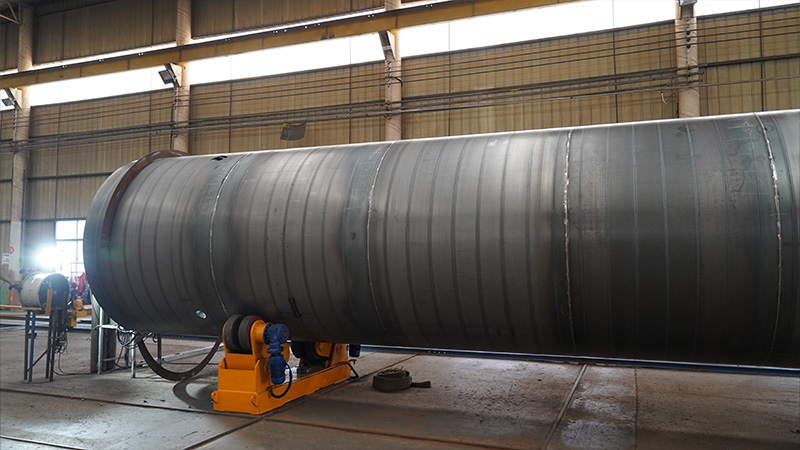

| Tank body | 5mm-7mm | |
| End plate | 6mm-20mm | |
| Man hole | 300mm-500mm | |
| Braking system | Dual linebrake system,Double air chamber ,brake valve,40L air tanks;ABSEBS optional | |
| Electrical | LED light,7ways,24V | |
| Painting | Blasting and clean rust,1 coat of prime painting ,2 coat of finish painting | |
➩ Applications
Corrosive liquid tank trailers are primarily used in:
Chemical Industry
Agricultural and Pesticide Transportation
Pharmaceutical Industry
Emergency Chemical Transport
Hazardous Goods Transport
These trailers provide reliable and safe transportation for a wide range of corrosive and dangerous chemicals.
