Product Introduction
Aluminum alloy semi-trailers are becoming a preferred solution in modern transportation due to their light weight, strength, and resistance to corrosion. These trailers are suitable for various industries such as long-distance travel, cold chain, and chemical transportation. Their performance improves efficiency, reduces operational costs, and contributes to environmental sustainability. With the increasing focus on eco-friendly solutions, aluminum alloy trailers are set to dominate the future of logistics.

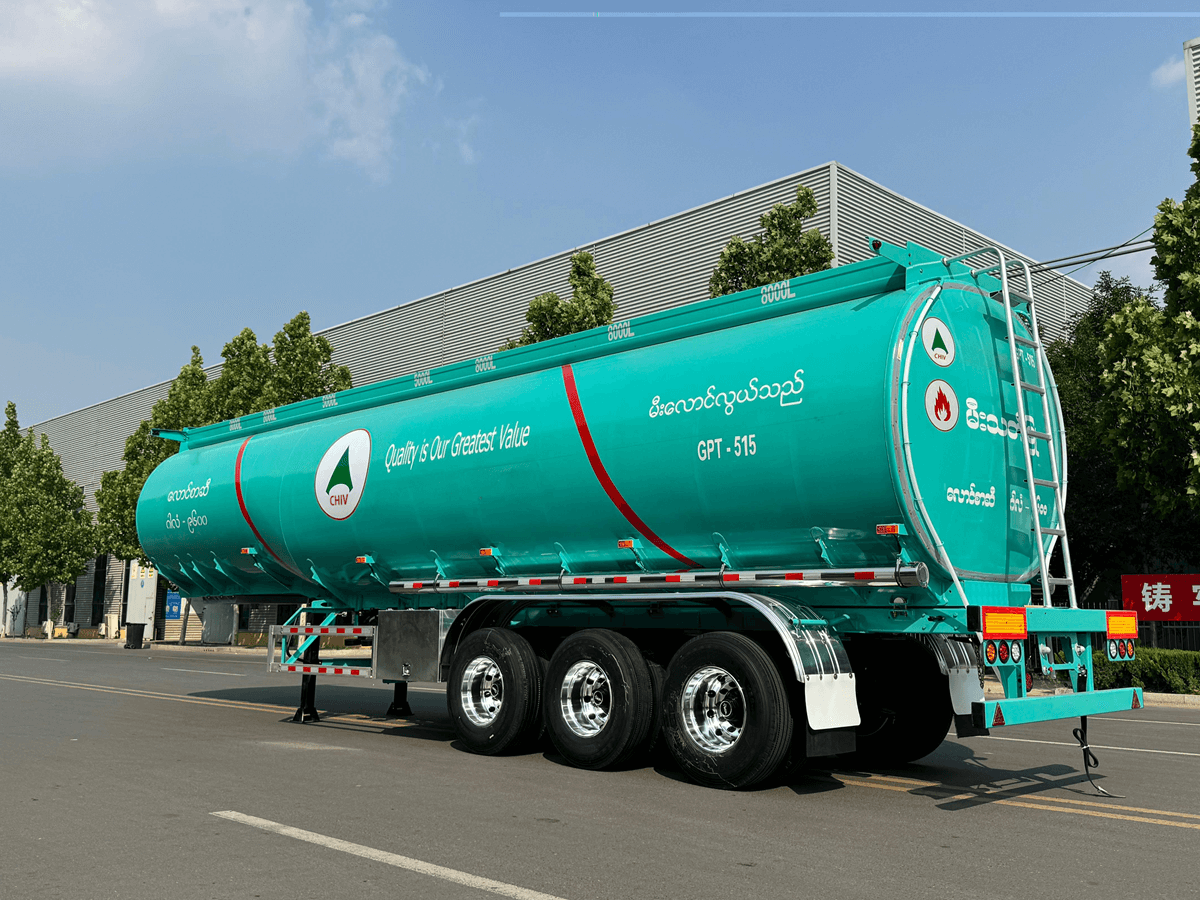

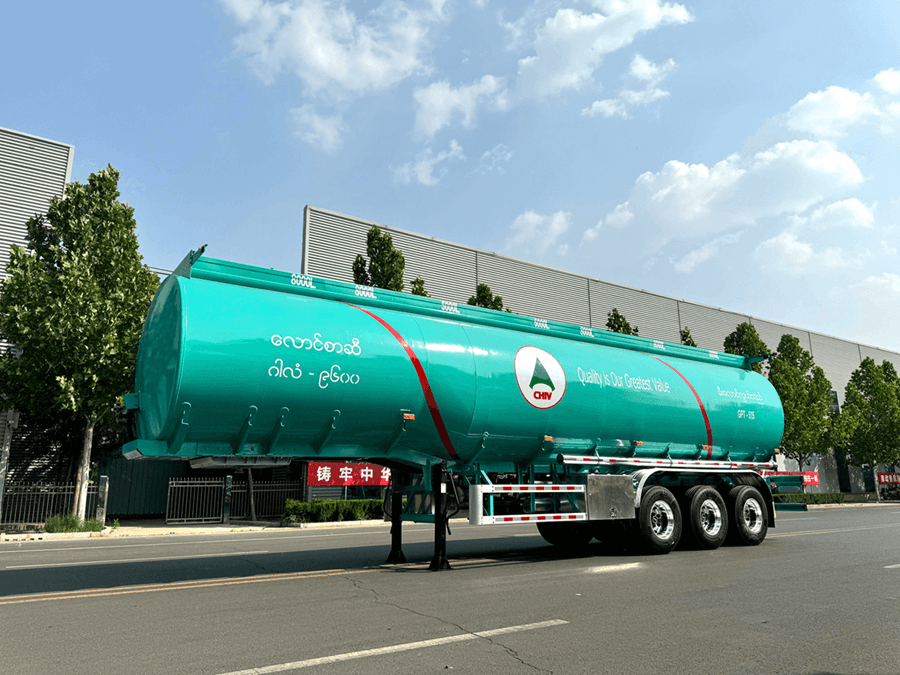

Introduction to 50000 Liters Aluminum Alloy Tanker Trailer
The advantages of aluminum alloy fuel tanker trailer are light weight, stable center of gravity and high safety during transportation; light weight reduces tire wear, and aluminum alloy semi-trailer is not easy to generate static electricity

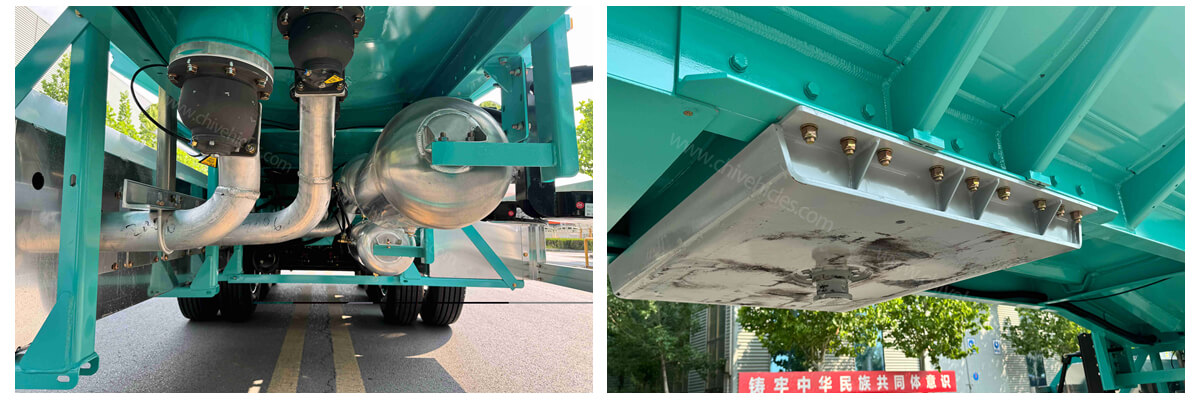

According to the transportation requirements, the oil tank semi-trailer is divided into 7 compartments, which is convenient for transporting different types of liquids. The discharge port valve API or Chinese standard can be selected
The accessories we use are all world-renowned brands. The axles can be BPW, SAF, FUWA, and the outriggers can be JOST and FUWA.

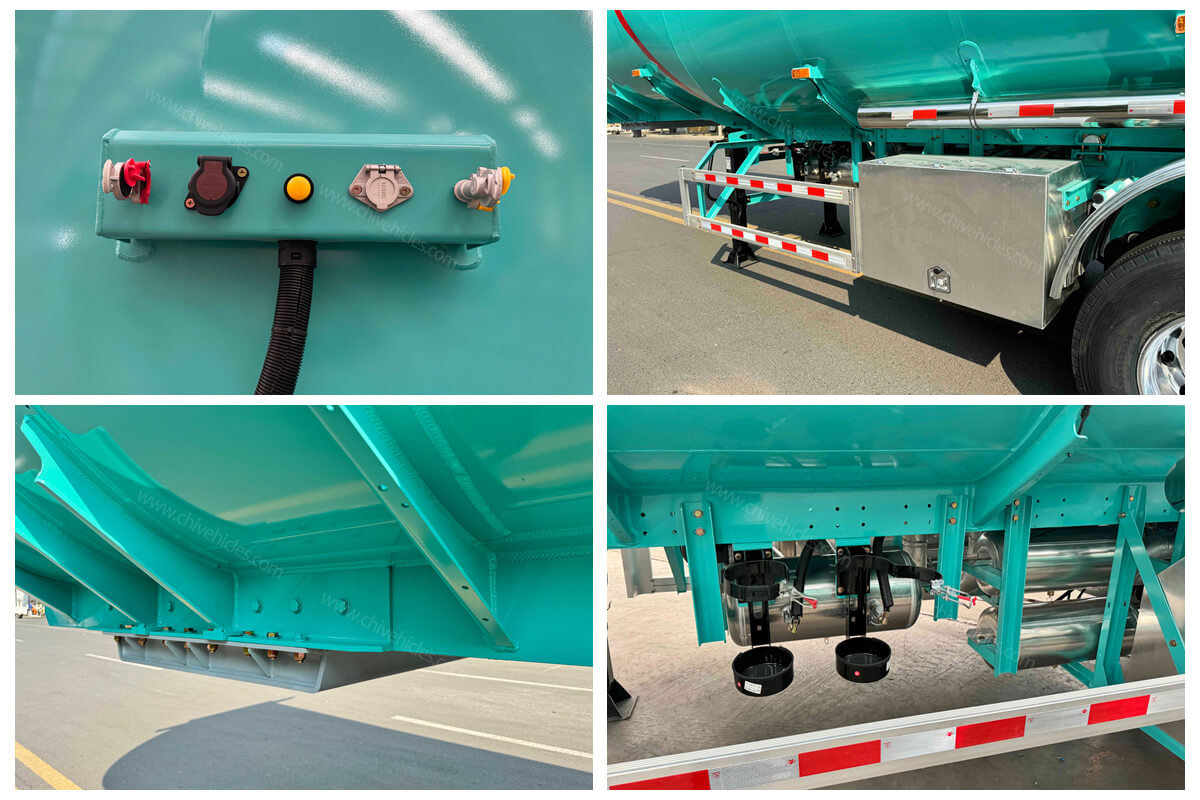

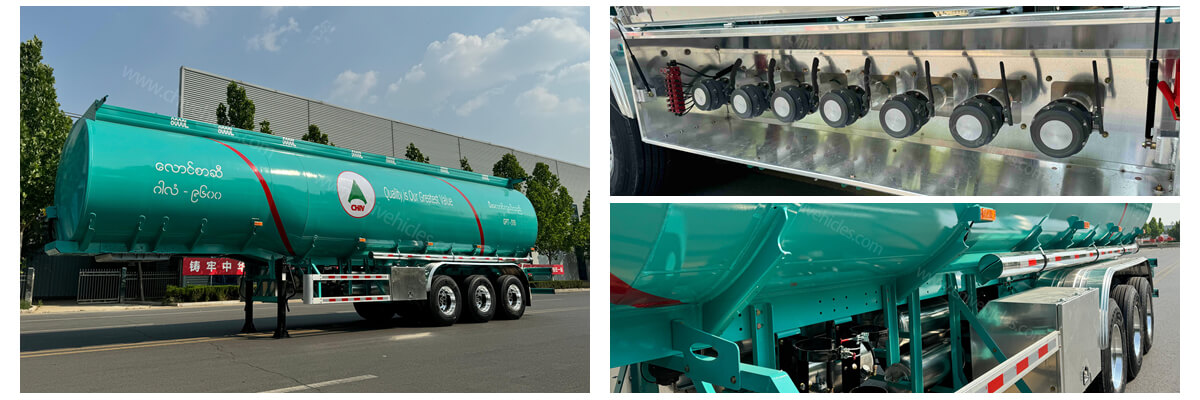

Detailed display of the 50,000L Fuel Tanker Trailer:
| Manufacturer | HONGTAI Group |
| Aluminum tank body thickness | Tank body: 5.5mm End plate: 6mm |
| Landing gear | 28T JOST |
| King pin | 50# 90# |
| Fuel tank body material | Aluminum alloy/Carbon steel/Stainless steel |

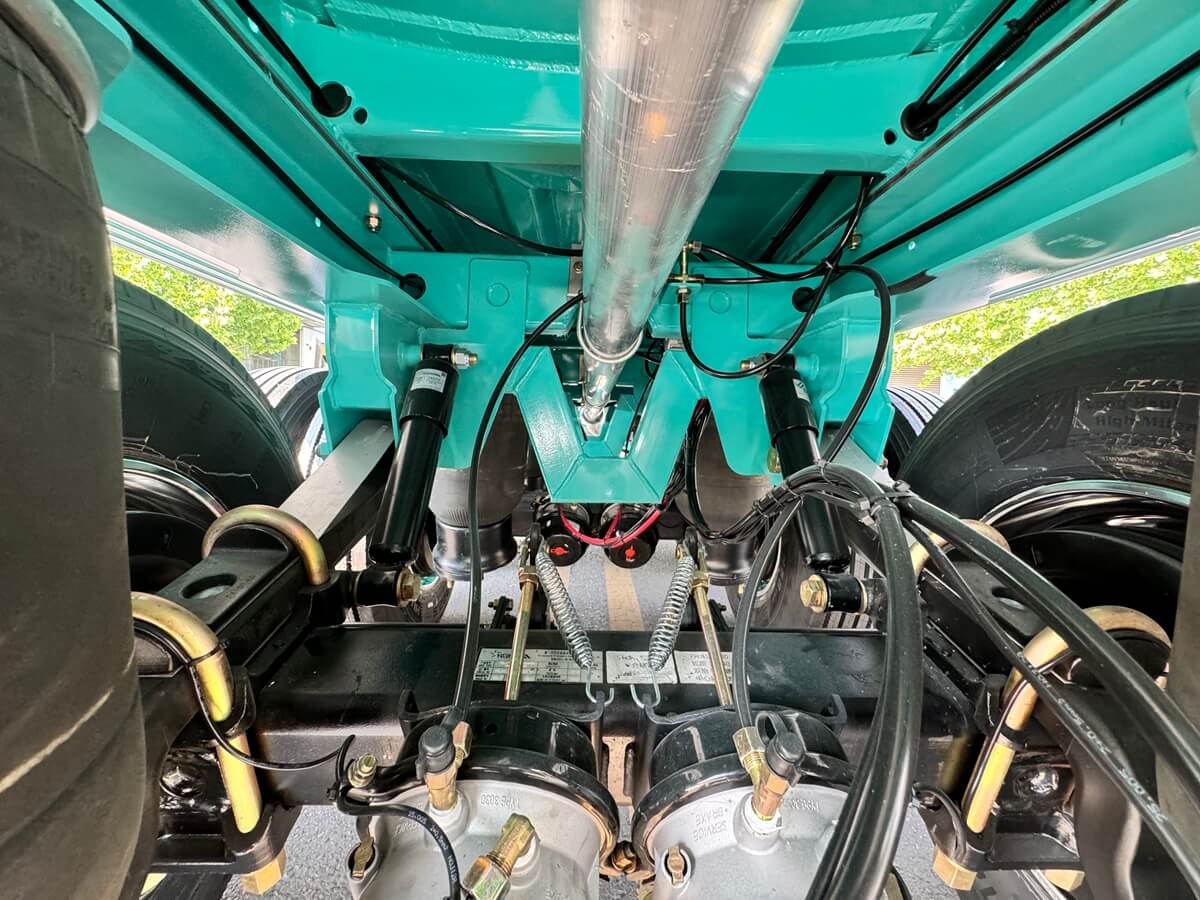

| Suspension | Air suspension/Mechanical suspension |
| Fuel tanker capacity | 20KL-90KL(Customized according to requirements) |
| Brake system | Wabco emergency valve, ABS/EBS optional |
| Application | Gasoline, diesel, crude oil |
➩ Product Advantage
A major advantage of aluminum alloy semi-trailers is their lightweight design, which reduces vehicle weight by 15% to 30% compared to traditional steel trailers. This results in lower fuel consumption and increased load capacity, making them more energy-efficient for long-haul transportation.
Despite being lighter, aluminum alloy maintains high strength and durability, making it suitable for heavy-duty use. It is also highly resistant to corrosion, even in harsh conditions like humid or salty environments. This makes aluminum alloy trailers ideal for coastal and chemical plant areas, reducing maintenance costs associated with rust and wear.
Aluminum alloy is not only recyclable but also helps reduce maintenance efforts due to its durability and resistance to oxidation. This contributes to lower operational costs and longer trailer life. As environmental regulations tighten, aluminum alloy semi-trailers offer a sustainable choice for companies seeking to minimize their ecological footprint.
➩ Technical Parameters
| ltem | specifications | Remark |
| Material | Aluminum | |
| Axles | 3/4*13ton capacity | OCT,FUWA,BPWor other Brand |
| Suspension | Mechanical suspension | Air /bogie suspension optiona |
| Leaf spring | 10pcs | Air bag lifting optional |
| Tire | 12R22.5,11R22.5,315/80R22.5, 385/65R22.5 | Size andbrand optiona |
| Rim | 9.00-22.5,8.25-22.5,11.75-22.5 | Other size optiona |
| King pin | 2"/3.5"bolt type | Welding on type optiona |
| Landing gear | 28 Ton two speed | JOST or equivalent brand |
| Tank body | 5.5mm | |
| End plate | 6mm | |
| Man hole | 300mm-500mm | |
| Braking system | Dual linebrake system,Double air chamber ,brake valve,40L air tanks; | |
| Electrical | LED light,7ways,24V | |
| Painting | Blasting and clean rust,1 coat of prime painting ,2 coat of finish painting | |
➩ Applications
Aluminum alloy semi-trailers are widely used in:
Long-distance Transportation: Efficient for long-haul routes.
Cold Chain Logistics: Ideal for temperature-sensitive goods.
Chemical Transport: Suitable for chemicals that require secure and durable transport.
Construction and Food Industries: For transporting building materials and food products.
These trailers offer a combination of performance, durability, and sustainability across multiple sectors.
