Product Introduction

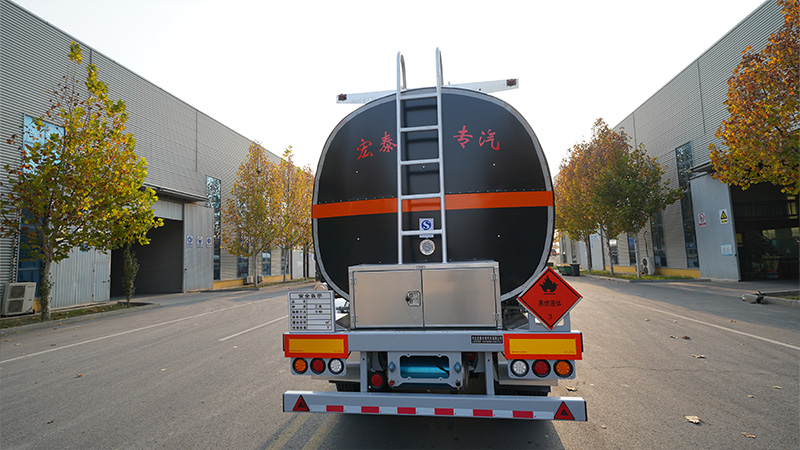

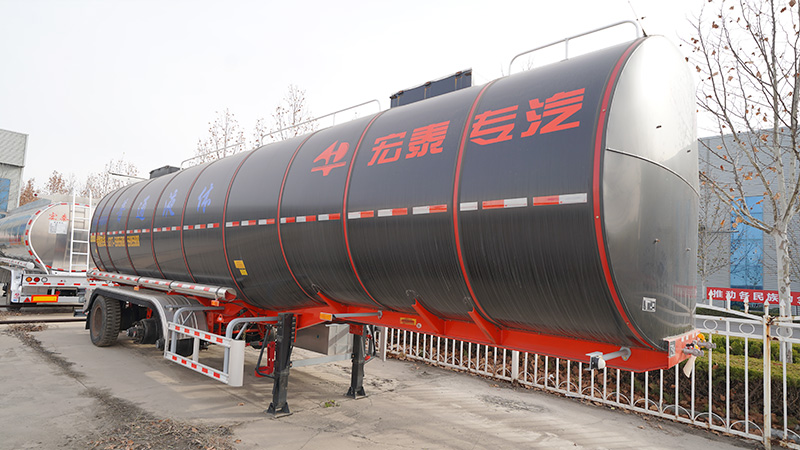

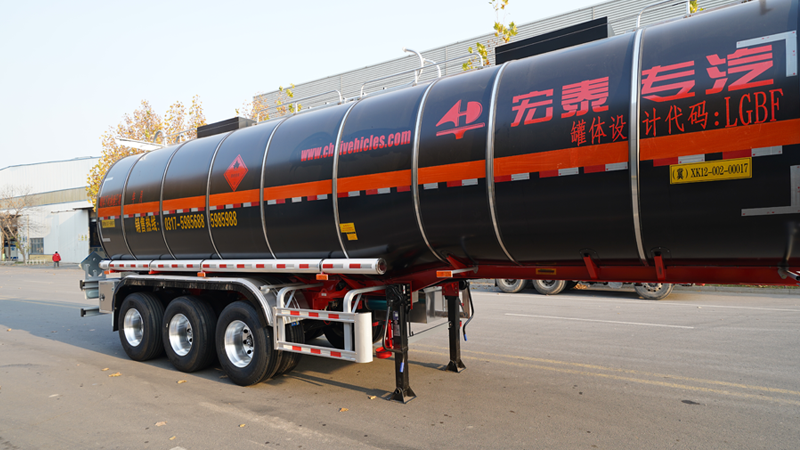

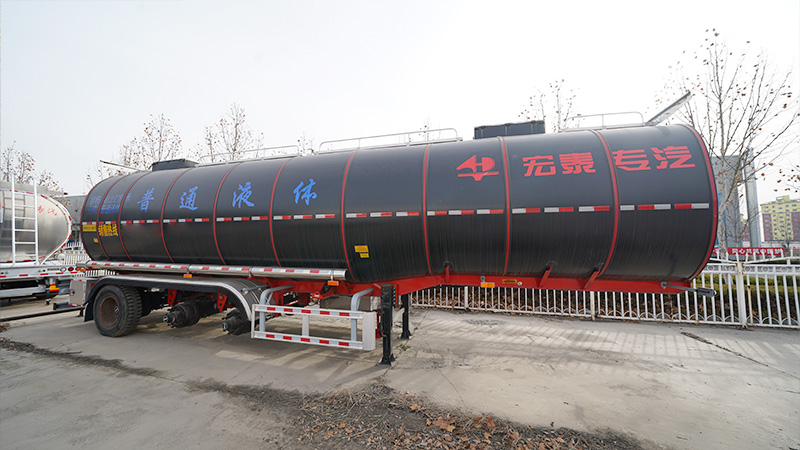

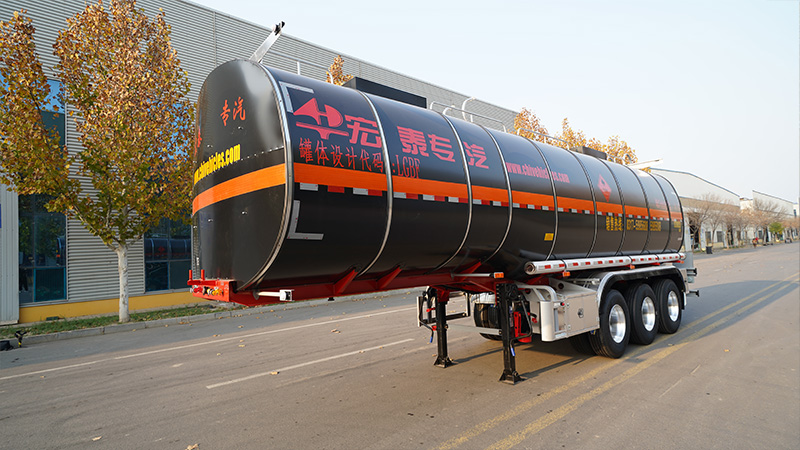

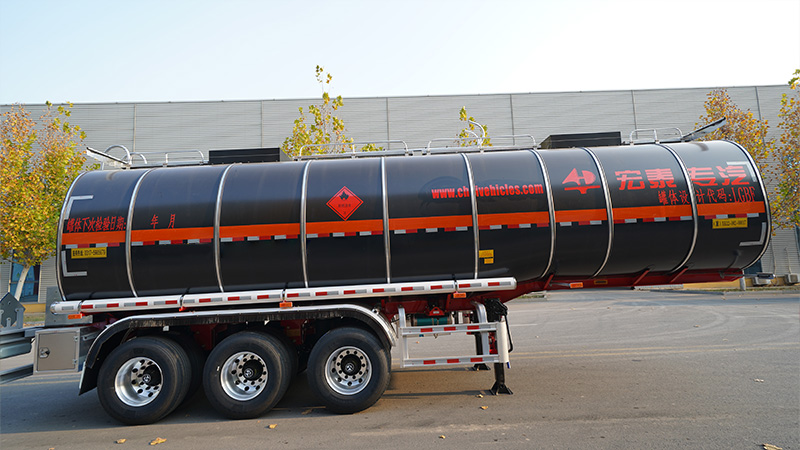

Introduction to Asphalt Tank Trailers
Asphalt tank trailers are designed for the safe and efficient transportation of hot asphalt, essential for industries such as road construction, bridge maintenance, and infrastructure development. Equipped with advanced heating, insulation, and safety features, these trailers ensure asphalt remains at a stable temperature and safe during transport, meeting the rigorous requirements of large-scale projects.
➩ Product Advantage
Key Features of Asphalt Tank Trailers
Durability and High-Temperature Resistance
The tank body of asphalt tank trailers is primarily made from carbon steel (Q235 or Q345), designed to withstand the intense heat and pressure from transporting hot asphalt. Carbon steel offers excellent resistance to deformation, cracking, and corrosion, making it ideal for handling high-temperature materials. Stainless steel or aluminum alloys may be used upon special request, but carbon steel is the standard material for these trailers.
Effective Heating and Insulation
To maintain the fluidity of asphalt, these trailers are equipped with efficient heating systems, such as steam, electric, or oil heating. An insulation layer within the tank helps minimize heat loss, preventing asphalt from solidifying in cooler conditions and ensuring consistent temperature during transport.
Maintenance-Friendly and Efficient Operation
The tank’s interior is designed with smooth, cornerless surfaces for easy cleaning, which is vital for preserving the quality of asphalt. Additionally, the large capacity and efficient loading/unloading systems reduce waiting times, improving overall transportation efficiency, especially in large-scale projects.
➩ Technical Parameters
| ltem | specifications | Remark |
| Material | Carbon steel/stainless steel/Aluminum | |
| Axles | 2/3/4*13ton capacity | OCT,FUWA,BPWor other Brand |
| Suspension | Mechanical suspension | Air /bogie suspension optiona |
| Leaf spring | 10pcs | Air bag lifting optional |
| Tire | 12R22.5,11R22.5,315/80R22.5, 385/65R22.5 | Size andbrand optiona |
| Rim | 9.00-22.5,8.25-22.5,11.75-22.5 | Other size optiona |
| King pin | 2"/3.5"bolt type,SAE standard | Welding on type optiona |
| Landing gear | 28 Ton two speed | JOST or equivalent brand |
| Tank body | 5mm-7mm | |
| End plate | 6mm-20mm | |
| Man hole | 300mm-500mm | |
| Braking system | Dual linebrake system,Double air chamber ,brake valve,40L air tanks;ABSEBS optional | |
| Electrical | LED light,7ways,24V | |
| Painting | Blasting and clean rust,1 coat of prime painting ,2 coat of finish painting | |
➩ Applications
Asphalt tank trailers are used in various industries, including:
Road Construction: Transporting asphalt for road paving.
Construction and Mining: For heavy-duty industrial transportation.
Bridge and Infrastructure Maintenance: Supporting critical infrastructure projects.
Emergency Repairs: Ensuring quick delivery of hot asphalt for urgent repairs.
These trailers combine durability, efficiency, and safety, making them ideal for a wide range of transportation needs.
