CHIV bulk cement tank trailers can be customized with capacities ranging from 20 cubic meters to 90 cubic meters. The tank shape can also be designed in V-type and W-type. Contact our engineering team and they will give you the most reasonable design solution based on your requirements!
Durability and Material Strength
The bulk cement tank is typically made from high-strength steel or aluminum alloy, both of which provide superior resistance to wear, corrosion, and pressure. This ensures the trailer can handle the heavy weight and abrasive nature of cement, even in harsh environments. The strong materials contribute to the extended lifespan of the trailer, making it a cost-effective investment for cement transport.

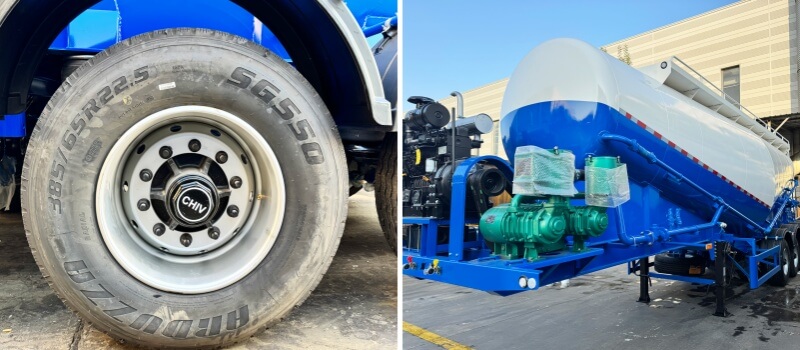

These 4-wheel bulk cement tanker trailers are equipped with 385/65R22.5 single tires as per the customer's requirements to meet their local transportation needs. We can also customize tires such as 12.00R20, 12R22.5, 315/85R22.5 according to your requirements.
Enhanced Sealing and Cost Efficiency
The trailer is designed with high-quality seals to prevent cement from leaking or absorbing moisture, particularly in rainy or humid conditions. This ensures the cement arrives in optimal condition. Additionally, the large storage capacity of the tank allows for bulk transportation, reducing the frequency of trips, and ultimately lowering transportation costs.
Applications
This semi-trailer is primarily used in construction sites, cement production plants, road building, and urban infrastructure projects. It is also ideal for railway and road logistics, supporting efficient cement delivery in large quantities.
➩ Technical Parameters
| ltem | specifications | Remark |
| Material | Carbon steel/stainless steel/Aluminum | |
| Axles | 2/3/4*13ton capacity | CHIV,FUWA,BPWor other Brand |
| Suspension | Mechanical suspension | Air /bogie suspension optiona |
| Leaf spring | 10pcs | Air bag lifting optional |
| Tire | 12R22.5,11R22.5,315/80R22.5, 385/65R22.5 | Size andbrand optiona |
| Rim | 9.00-22.5,8.25-22.5,11.75-22.5 | Other size optiona |
| King pin | 2"/3.5"bolt type,SAE standard | Welding on type optiona |
| Landing gear | 28 Ton two speed | JOST or equivalent brand |
| Tank body | 5mm-7mm | |
| End plate | 6mm-20mm | |
| Man hole | 300mm-500mm | |
| Braking system | Dual linebrake system,Double air chamber ,brake valve,40L air tanks;ABSEBS optional | |
| Electrical | LED light,7ways,24V | |
| Painting | Blasting and clean rust,1 coat of prime painting ,2 coat of finish painting | |
