Product Description

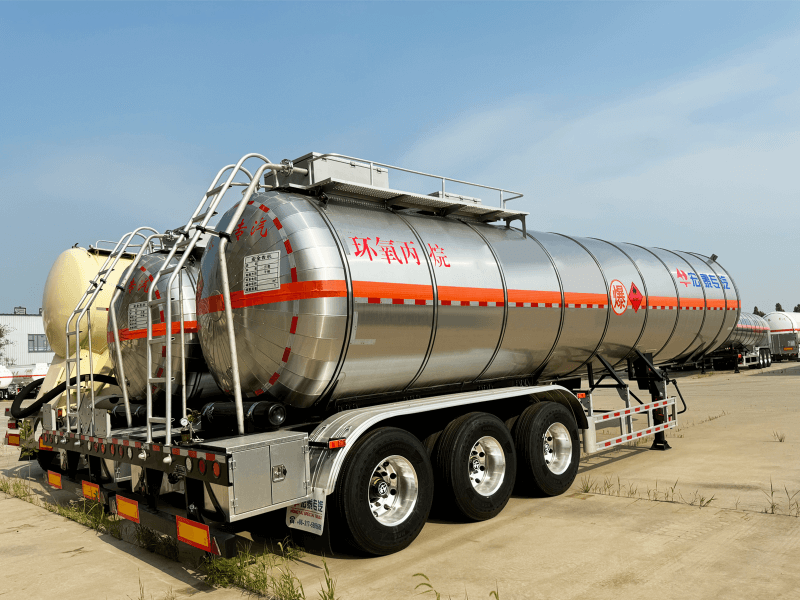

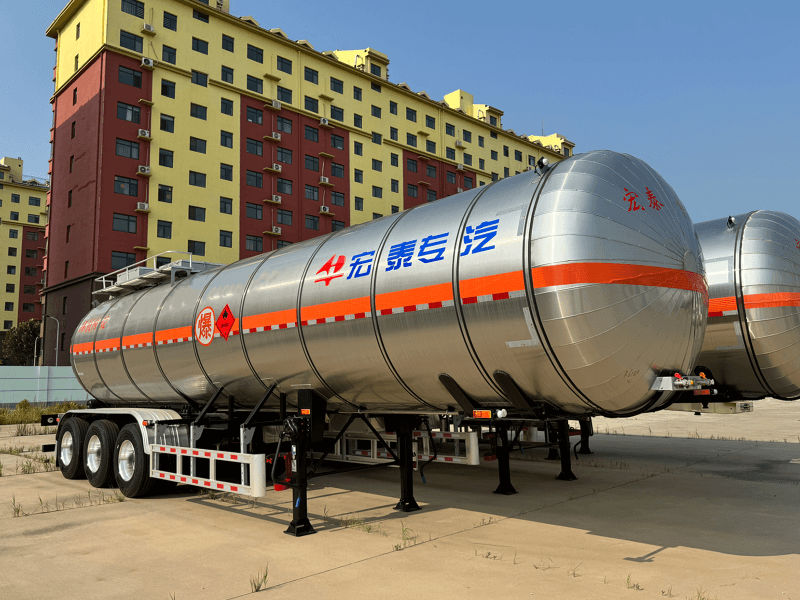

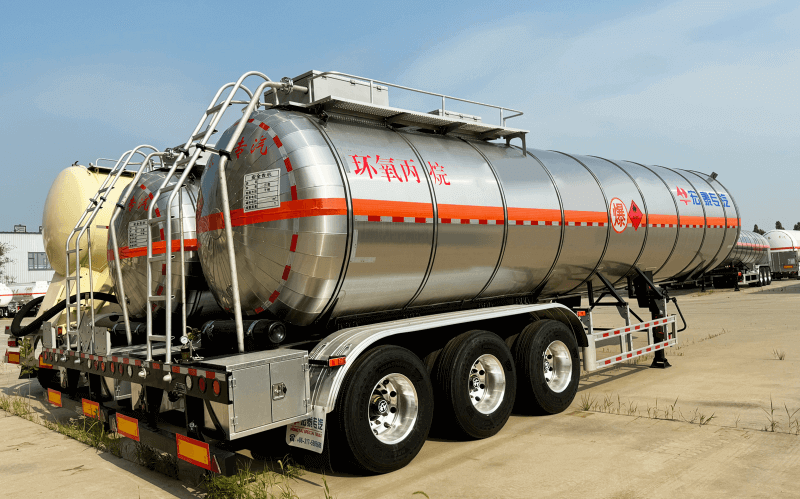

Ethylene Oxide Tank Trailer For Sale
CHIV ethylene oxide tank trailers use 316L stainless steel liner, which has good corrosion resistance to prevent chemical reactions between the transport medium and the tank body. The ethylene oxide tank trailer has an efficient insulation structure, and the temperature fluctuation during transportation is less than 2 degrees Celsius to prevent ethylene oxide from gasifying.
Loading Method: Ethylene oxide tank trailer loading speed is limited to prevent static electricity.
Unloading Method: Gas phase top pressure unloading.
Sealing System: Fluororubber and PTFE seals are used.
Ethylene Oxide Tank Trailer Manufacturer
Security Configuration:
1.Safety valve & emergency shut-off valve: Prevent overpressure and leakage accidents
2.Breathing valve: Maintains pressure balance inside and outside the tank
3.Static discharge system: Prevents static sparks during loading and unloading
4.Explosion-proof pressure gauge: Monitors tank pressure in real time
5.Bottom guard: Protects the valve area in the event of a collision
6.Nitrogen blanketing system: Select models are equipped with a nitrogen blanket to prevent explosive gases from mixing with air.
Technical Parameters
| Design pressure | 1.77MPa ~ 2.16MPa |
| Design temperature | -20℃ ~ +50℃ |
| Insulation method | Double-layer structure + polyurethane insulation (reduces temperature changes and ensures stability) |
Applicable Transportation Scope:
Suitable for cross-border and port-to-factory transport of liquid ethylene oxide
Suitable for transporting raw materials in chemical parks, pharmaceutical plants, and fine chemical plants
