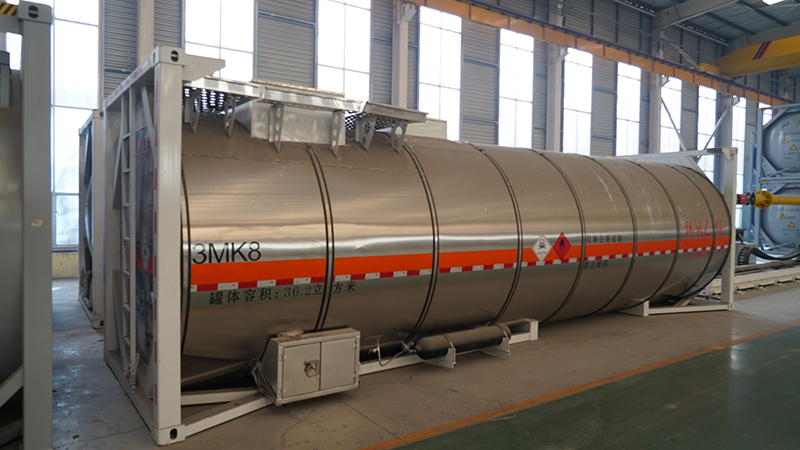

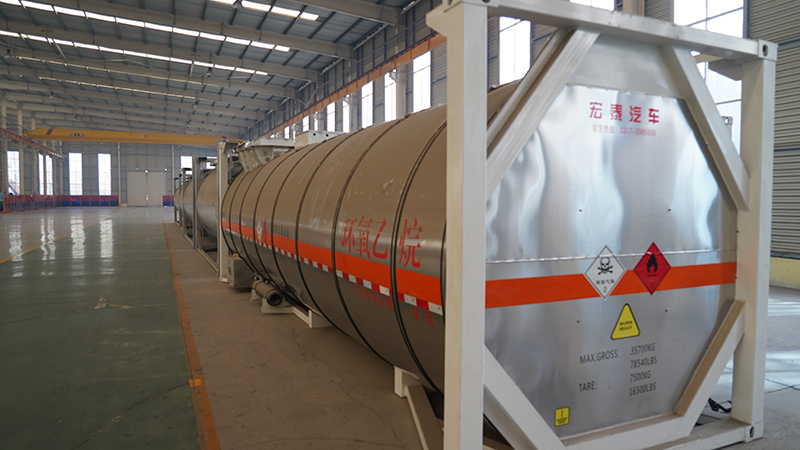

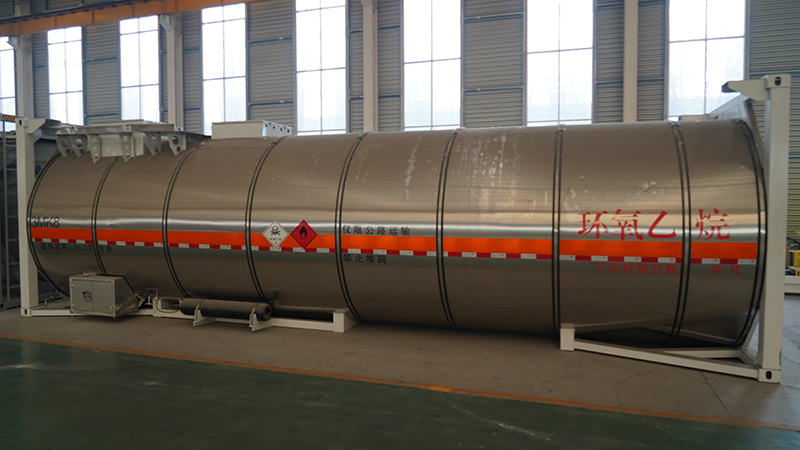

ASME Standard 20 Feet ISO tank Container

Brand : HONGTAI
Maximum Load Capacity : 25001 - 30000 Kilograms
Axle : 2/3/4*13ton capacity
Material: Carbon steel/stainless steel/Aluminum
Certificates : CCC, ISO9001, ISO14001, OHSAS18001, IATF16949 and ASME standards certification
  • 7-30 days for delivery
  • Sizes can be customized.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
whatsapp sharing button
sharethis sharing button

Product Description


➩ Product Advantage

Durability and Material Strength
These containers are crafted from materials such as high-strength steel, stainless steel, or aluminum alloys, which offer resistance to corrosion, pressure, and impact. The robust tank structure ensures the container can endure the pressures of long-distance transportation and fluctuating external conditions, extending its service life.


Advanced Sealing and Customization
Tank containers feature advanced sealing systems that effectively prevent leakage or evaporation of liquids and gases, ensuring safe transport. Additionally, these containers can be tailored to the specific needs of different goods, such as dangerous chemicals, food products, or pharmaceuticals. Customization options include inner wall coatings, temperature regulation systems, and gas compression devices to meet unique requirements.


Applications
Tank containers are utilized in the chemical, oil, food and beverage, pharmaceutical, and agricultural industries, as well as in the transport of hazardous materials. Their ability to handle a wide range of liquids and gases, while maintaining safety and efficiency, makes them indispensable in modern transportation and logistics systems.


➩ Technical Parameters

ltemspecificationsRemark
MaterialCarbon steel/stainless steel/Aluminum
Axles2/3/4*13ton capacityOCT,FUWA,BPWor other Brand
SuspensionMechanical suspensionAir /bogie suspension optiona
Leaf spring10pcsAir bag lifting optional
Tire12R22.5,11R22.5,315/80R22.5,
385/65R22.5
Size andbrand optiona
Rim9.00-22.5,8.25-22.5,11.75-22.5Other size optiona
King pin2"/3.5"bolt type,SAE standardWelding on type optiona
Landing gear28 Ton two speedJOST or equivalent brand
Tank body5mm-7mm
End plate6mm-20mm
Man hole300mm-500mm
Braking systemDual linebrake system,Double air chamber ,brake valve,40L air tanks;ABSEBS optional
ElectricalLED light,7ways,24V
PaintingBlasting and clean rust,1 coat of prime painting ,2 coat of finish painting
