Product Description
➩ Key Features
Durable and Pressure-Resistant Tank Constructed from high-strength materials, the tank is engineered to withstand high internal pressures and external environmental changes. Its corrosion-resistant design ensures safe gas containment throughout the transport process.
Advanced Insulation for Efficiency High-quality thermal insulation materials minimize temperature fluctuations, preserving LPG in liquid form for extended periods. This reduces energy loss and enhances transport efficiency.
Flexible Transport Capacity Designed to accommodate bulk LPG shipments, the semi-trailer serves industrial users, fuel stations, and urban or rural distribution networks. It provides adaptable logistics solutions based on specific transport requirements.
Versatile and Reliable Performance Built for diverse environments, the semi-trailer operates effectively in urban, rural, and long-distance transport scenarios. Its robust design ensures stable and efficient operations under varying road and climate conditions.
Eco-Friendly and Low Emission As part of the clean energy transition, the semi-trailer features an advanced sealing system to minimize gas leakage. Optimized aerodynamics and fuel-efficient design contribute to reduced emissions and lower environmental impact.
Streamlined Loading and Unloading With an optimized fluid dynamics system, the semi-trailer experiences reduced wind resistance and increased stability. An advanced loading and unloading mechanism significantly improves operational efficiency, reducing transport time.
➩ Technical Parameters
ltem | specifications | Remark |
Material | Carbon steel/stainless steel/Aluminum | |
Axles | 2/3/4*13ton capacity | OCT,FUWA,BPWor other Brand |
Suspension | Mechanical suspension | Air /bogie suspension optiona |
Leaf spring | 10pcs | Air bag lifting optional |
Tire | 12R22.5,11R22.5,315/80R22.5, 385/65R22.5 | Size andbrand optiona |
Rim | 9.00-22.5,8.25-22.5,11.75-22.5 | Other size optiona |
King pin | 2"/3.5"bolt type,SAE standard | Welding on type optiona |
Landing gear | 28 Ton two speed | JOST or equivalent brand |
Tank body | 5mm-7mm | |
End plate | 6mm-20mm | |

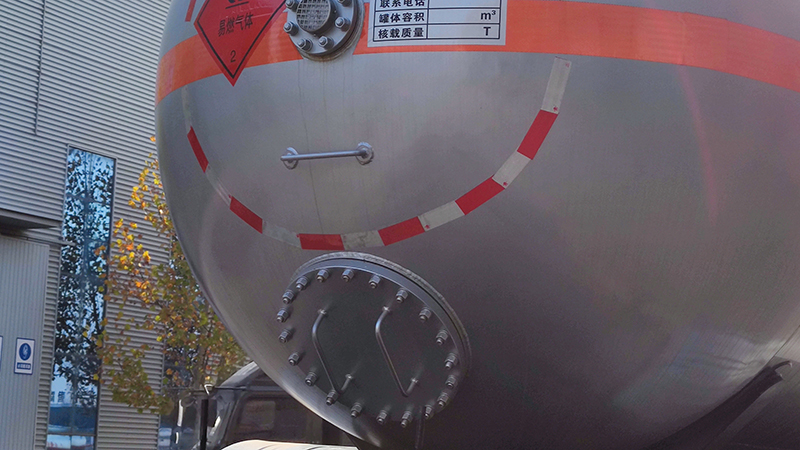

Man hole | 300mm-500mm | |
Braking system | Dual linebrake system,Double air chamber ,brake valve,40L air tanks;ABSEBS optional | |
Electrical | LED light,7ways,24V | |
Painting | Blasting and clean rust,1 coat of prime painting ,2 coat of finish painting |
➩ Applications
Long-distance LPG transport
LPG fuel station distribution
Industrial gas supply
Emergency and remote area fuel delivery
Backup energy supply and disaster recovery
Fueling ships, ports, and offshore platforms
Green energy and environmental initiatives
Small-scale LPG redistribution
